    Rod Mill

    Rod Mill

    • Advanced techniques
    • Effective, reliable performance
    • High crushing ratio
    • Even particle sizes
    Overview

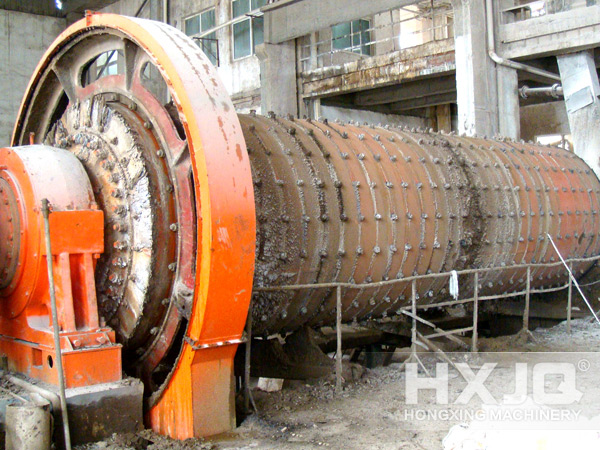

    Introduction to Rod Mill

    Rod mills, also named rod grinders, are available in dry and wet types. Customers can choose anything they like according to actual conditions. The company adopts the advanced controllable materials feeding in and discharging technology and installs appropriate grinding rod depending on the actual materials changing from the traditional surface contact to line contact, making more even particle size and higher yield. Therefore, they are widely used in refractory, chemical industry, metallurgy, glass and other industries, which are highly demanding of evenness degree for finished products. In recent years, they are also used in sand making industry for building materials.

    Features of Rod Grinding Machine

    During the grinding process, the grinding medium line contacts with the ores. Due to selective grinding, the granularity of products is more even, resulting into less ore grains. In coarse grinding, bar mills have greater capacity than the ball mills of the same specification.

    Working Principle of Rod Grinding Mill

    The bar mill drives the cylinder in rotation by the engine through the rotation of the reducer and big gears around with the deceleration or through low speed synchronous motor driving directly peripheral big gears. The machine is equipped with appropriate grinding medium-steel bar, which is raised to a certain height under the centrifugal force and friction force and then cast down or discharged. The materials to be crushed are continuously added to the cylinder, shattered by the rotating grinding medium and discharged for the next procedure by the overflow and the power of continuously feeding in materials.

    Technical Data

    Model
    Shell Specifications (mm)
    Shell rotation speed
    (r/min)
    Feeding size
    (mm)
    Discharging size
    (mm)
    Processing capacity
    (t/h)
    Power
    (kw)
    Total weight
    (t)
    Diameter Length
    MBS0918 900 1800 36-38 ≤25 0.833-0.147 0.62-3.2 18.5 5.9
    MBS0924 900 2400 36 ≤25 0.833-0.147 0.81-4.3 22 6.7
    MBS1224 1200 2400 36 ≤25 0.833-0.147 1.1-4.9 30 13.9
    MBS1530 1500 3000 29.7 ≤25 0.833-0.147 2.4-7.5 75 19.8
    MBS1830 1830 3000 25.4 ≤25 0.833-0.147 4.8-11.6 130 34.9
    MBS2130 2100 3000 23.7 ≤25 0.833-0.147 14-35 155 46.5
    MBS2136 2100 3600 23.7 ≤25 0.833-0.147 19-43 180 48.7
    MBS2430 2400 3000 21 ≤50 0.833-0.147 25-65 245 59.7
    MBS2736 2700 3600 20.7 ≤50 0.833-0.147 32-86 380 92.5
    MBS2740 2700 4000 20.7 ≤50 0.833-0.147 32-92 400 95
    MBS3245 3200 4500 18 ≤50 0.833-0.147 64-180 630 149
