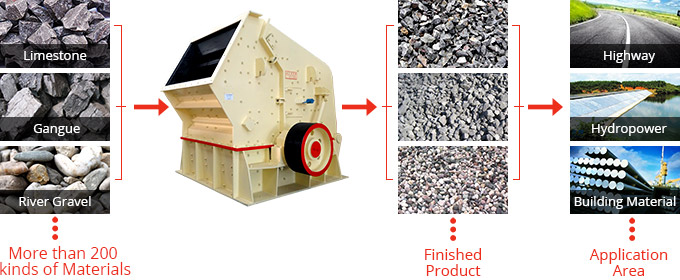

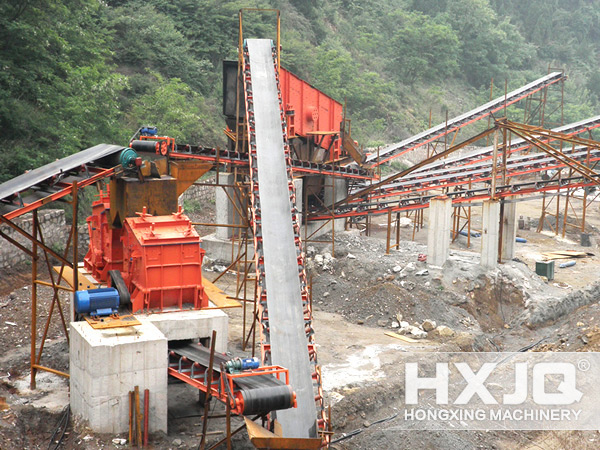

    Introduction to the Impact Crusher

    The China impact crusher is new type highly-efficient crushing equipment with the features of small size, simple structure, high crushing ratio (as much as 40), low energy consumption, strong production ability, even particle size, etc. As a very promising machine, it has been applied in some ore dressing factories owing to the appearance of highly-abrasive materials.

    The impact breaker can handle materials with side length from 100 to 500 mm. Its highest compressive strength can reach 350 MPa.

    This series of impact crushers is the new generation type which has combined the advanced techniques at home and abroad with the actual mining conditions. They adopt the latest manufacturing technology and unique structure design and produce products with cubical shape without tension and crack.

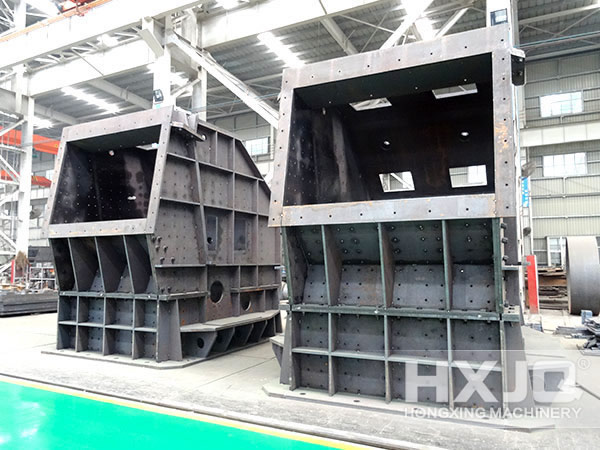

    Structure of the Impact Crusher

    The Mineral Impact Crusher Machine is mainly made up of rotor rack, impact rack, ratchet wheel open-cover device, rotating parts as well as other components.

    There are two parallel rotors in the Mobile Impact Crusher with some altitude differences. The position of the first rotor is relatively high, with an angle of 12°from the node of the first and the second rotor. The first rotor is a heavy type used for coarse crushing; the second rotor rotates fast, which can meet the needs of the final product. The rotors are both fixed with bolts. The 12 blow bars distributed to 6 rows are made of high manganese steel. The rotors are fixed on the main shaft and separately connected with the coupling by two engines.

    Features of the Impact Crusher

    1. Big feeding port, high crushing cavity. It is suitable for crushing materials with medium hardness and large size;

    2. The space between the counter-attack board and plate hammer can be adjusted conveniently in order to effectively control the particle size;

    3. Compact structure with strong rigidity and rotors with strong rotational inertia;

    4. High chrome plate hammers, impact resistant, huge impulsive force;

    5. Non-bolt link, convenient maintenance, economical and reliable operation;

    6. Complete crushing functions, high productivity, high efficiency and little abrasion;

    Working Principle of the Impact Crusher

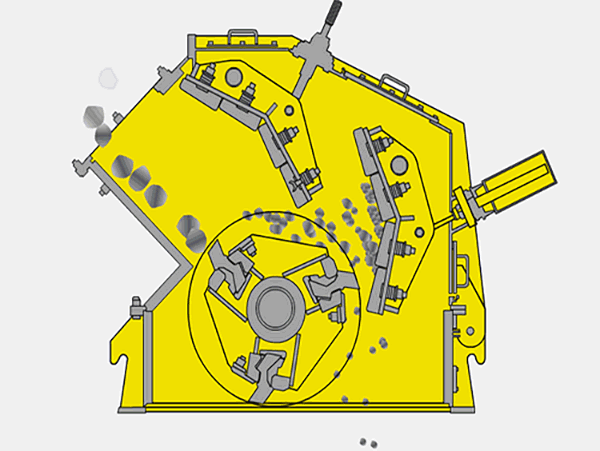

    The materials fall to the high-speed rotating turn plate. With the effect of strong centrifugal force, these materials in the plate hammer function area will impact with hammers on the rotor. Then the materials will be thrown into the counter attack device for second crushing. After that, they are rebounded to the former area from the impact lining board for further crushing. This process will be repeated until desired purpose is achieved. The finished products will be discharged from the discharge port. To control the granularity and the shape of the materials, you can adjust the space between the impact rack and the rotor.

    Technical Data

    Model Specifications (mm) Feed  Opening (mm) Max.Feeding Size (mm) Capacity (t/h) Power (kw) Dimensions(L×W×H) (mm)
    PF-1007 Φ1000×700 400×730 300 30-70 4P   37-45 2330×1660×2300
    PF-1010 Φ1000×1050 400×1080 350 50-90 4P   45-55 2370×1700×2390
    PF-1210 Φ1250×1050 400×1080 350 70-130 6P   110 2680×2160×2800
    PF-1214 Φ1250×1400 400×1430 350 80-180 6P   132 2650×2460×2800
    PF-1315 Φ1320×1500 860×1520 500 100-280 6P   200 3180×2720×3120
    PF-1320 Φ1300×2000 993×2000 500 140-380 6P   250 3220×3100×3120
    PF-1520 Φ1500×2000 830×2040 700 200-550 4P   315-400 3959×3564×3330
    PF-1820 Φ1800×2000 1260×2040 800 300-800 6P   630-710 4400×3866×4009
