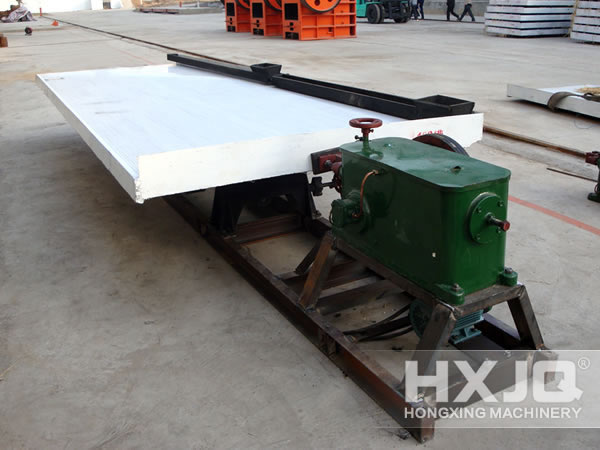

    Concentrator Table

    Concentrator Table

    • Wide range of applications
    • Easy operation
    Overview

    Concentrator table is also called shaking concentrator or table concentrator, which is a mine selecting machine for fine materials and it works by gravity. It is widely used in selection of tin, tungsten, gold, silver, lead, zinc, tantalum, niobium, iron.

    Advantages of Concentrator Table:

    1. Fine water-resistance, chemical resistance, corrosion resistance, abrasion resistance, etc;

    2. We can simplify the repair and painting process, which directly reduces the maintenance cost, greatly increases recovery rate, and prolongs the life of machines. Concentrator table is the best product for mineral processing machine updating.

    Structure of Concentrator Table:

    (1) Head Motion: The head motion is of rugged construction and requires minimum maintenance. Its internal mechanism is splash lubricated from an integral oil sump.

    (2) Decks: The decks are built of 16 mm zircon-reinforced fiberglass with fabricated steel frames at the bottom and are easy to clean, requiring little maintenance. The specific gravity of fiberglass made into decks is one third of steel, while its strength reaches as high as 70%. This fiberglass desk also has the characteristics of water-resistance and corrosion-resistance and can hold the shape unchangeable at ±50℃.

    (3) Feed and Water Box: A wooden feed distributing box with hopper and a long water box are attached to the iron of the deck, giving a very even distribution of feed and water.

    (4) Base: A choice of ordinary type, groove steel support or big channel steel support is available.

    Application of Concentrator Table:

    Concentrator tables are designed to wet gravity-based separation of minerals and other granular materials. There are many applications where the concentrating table is of particular value and cannot be equaled for economical and efficient performance. They are effective in processing precious and base metal, rare metal and non-metallic minerals.

    Concentrator Table Price:

    Purchasing concentrator table not only emphasizes price of concentrator table but also quality and scale of company. It is good to visit companies. Hongxing Company has large scale, advanced technology, good after-sale service and reasonable concentrator table price. Welcome new and old customers to order!

    Technical Data

    Name Grit
    concentrator
     table
    Fine sand
    concentrator
     table
    Sludge
    concentrator
     table
    Bed surface
    Dimensions
    Length
    (mm)
    4450 4450 4450
    Driving
    part Width
    (mm)
    1855 1855 1855
    Concentrate
    part Width
    (mm)
    1546 1546 1546
    Max.feeding
    size(mm)
    2 0.5 0.15
    Feeding
    amount
    (t/d)
    30-60 10-20 15-25
    Feeding
    thickness
    (%)
    25-30 20-25 15-25
    Stroke
    (mm)
    16-22 11-16 8-16
    Frequency
    (f)
    45-48 48-53 50-57
    Bed surface
    Water quantity
    (t/d)
    80-150 30-60 10-17
    Bed surface
    Horizontal
    obliquity(°)
    2.5-4.5 1.5-3.5 1-2
    Bed surface
    Portrait
    obliquity(%)
    1.4 0.92 ----
    Table board
    corner(°)
    32-42 40 42
    Concentrating
    area(㎡)
    7.6 7.6 7.6
    Bed surface
    Length ratio
    2.6 2.6 2.6
    Shape of
    side-bed
    surface
    Rectangle Zigzag Triangle
    Motor
    power(kw)
    1.1 1.1 1.1
    Transmission
    device
    Eccentricity Linkage
