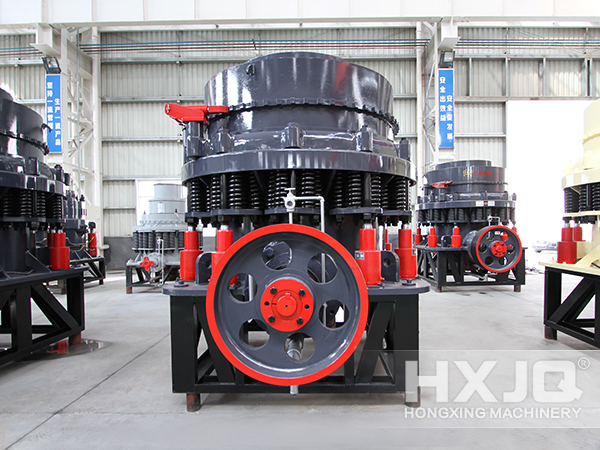

    Cone Crusher

    Cone Crusher

    Cone Crusher

    • Simple structure, steady performance
    • Easy maintenance, high productivity
    • High efficiency, high quality
    • Low cost
    Overview

    The China cone crusher is a machine used for breaking big rocks into minor rocks, gravels or rock dusts. The crusher is widely used for all kinds of medium and fine crushing rocks with compressive strength under 350MPa in mining, cement industry, sand industry, metallurgy and other fields. It is especially suitable for materials with Mohs hardness under  the range of 5-16, such as iron ore, non-ferrous metallic ore, granite, limestone, quartzite, sandstones, pebbles, etc.

    The characteristics are simple structure, steady performance, easy maintenance, high productivity, high efficiency, high quality, etc.

    This series of cone crushers can be subdivided into coarse crushing cone crusher, medium crushing cone crusher and fine crushing cone crusher. Customers can choose any type needed.

    Crushing cavity is specifically designed for different uses. The standard type is used for coarse and medium crushing while the short head type for medium and fine crushing.

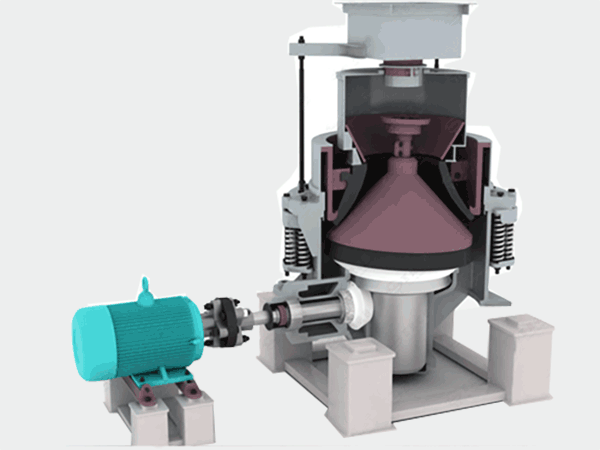

    Working Principle of the Cone Crusher

    When the cone crusher is working, the engine rotates around a fixed point driven by the belt wheel or the coupling. The transmission shaft and the conical part of the cone crusher swing under the force from the eccentric bushing, which makes the crushing wall close to the pierced mortar wall at intervals. Then, the ores will be impacted, squeezed and bent constantly in the crushing chamber. At last, the whole ore crushing process is finished.

    The perfect combination of high-performance crushing chamber and high crushing frequency improves the handling ability of the cone crusher to a greater degree.

    Functions and Features of the Cone Crusher

    The spring safety system of the cone crusher can achieve insurance when foreign matters get into the crushing cavity or when the machine is overloaded for other reasons. The uncrushed materials will be discharged through the enlarged port to get out of the crushing cavity. Due to the effect of the safety system, the discharging port will be restored, which makes the cone crusher work normally again.

    Technical Data

    Specification Model Diameter
    of large
    end of
    crushing
     cone
    (mm)
    Max.feeding
    size(mm)
    Width of
    discharge
    opening
    (mm)
    Processing
    capacity
    (t/h)
    Motor
    power
    (kw)
    Total
    weight
    (t)
    Dimensions
    (L×W×H)
    (mm)
    Φ600 PYB600 600 65 12-25 40 8P   30 5 2234×1370×1675
    PYD600 35 3-13 12-23 5.5 2234×1370×1675
    Φ900 PYB900 900 115 15-50 50-90 8P   55 11.2 2692×1640×2350
    PYZ900 60 5-20 20-65 11.2 2692×1640×2350
    PYD900 50 3-13 15-50 11.3 2692×1640×2350
    Φ1200 PYB1200 1200 145 20-50 110-168 8P   110 24.7 2790×1878×2844
    PYZ1200 100 8-25 42-135 25 2790×1878×2844
    PYD1200 50 3-15 18-105 25.3 2790×1878×2844
    Φ1750 PYB1750 1750 215 25-50 180-360 8P   160 50.3 3910×2894×3809
    PYZ1750 185 10-30 80-210 50.3 3910×2894×3809
    PYD1750 85 5-13 60-180 50.2 3910×2894×3809
    Φ2200 PYB2200 2200 300 30-60 420-700 8P   280-260 80 4622×3302×4470
    PYZ2200 230 10-30 130-410 80 4622×3302×4470
    PYD2200 100 5-15 80-200 81.4 4622×3302×4470
