    Overview

    Introduction to Dryer Machine

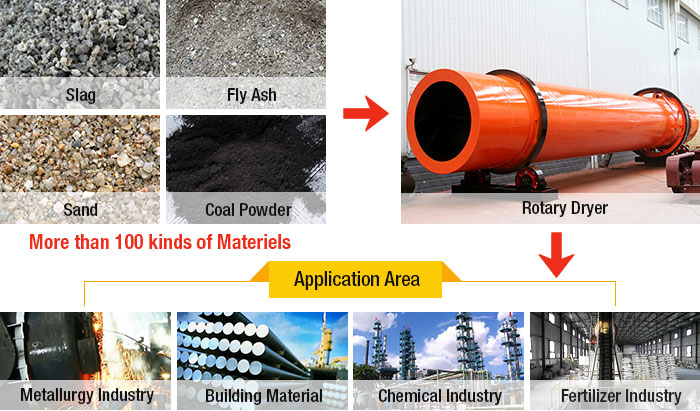

    Dryer machine has been mainly used for drying materials with some humidity and granularity in the fields such as ore dressing, building materials, metallurgy, chemical industry, etc. The rotary dryer is highly adaptable to materials. Due to its easy and reliable operation, it is widely used.

    Dryer Machine Types

    Hongxing industrial dryer machines can be divided into rotary dryer, sawdust dryer, drum dryer, limestone dryer, sand dryer, clay dryer, coal dryer, manure dryer, wood chip dryer, etc. Customers can choose the most suitable one according to specific demand.

    Performance Features of Rotary Dryer

    Rotary dryer mainly consists of the heat source, dispersioning device, belt type feeding port, rotary drum, belt type discharge port, draught fan, unloader and power distribution cabinet. It dries pre-crushed materials, thus increasing the contact area between materials and the hot draught. Therefore, the efficiency is improved.

    Working Principle of Drying machine

    The heat source of the dryer comes from the burning device by way of air current. Thus, the materials should be added from the feeding box and go to the cylinder through the feeding gutter. Since the dryer is put aslant, some of the materials flow to the trailing end under the gravity and the rotary force while other materials are raised by the shoveling plate over and over again to the top and then are scattered to form an even curtain. Because of the continuous exchange of heat, the water in the materials will be dried to achieve the effect.

    Technical Data

    Spec./m
    (Dia.×Length)
    Shell Cubage
    (m³)
    Capacity
    (t/h)
    Installation
    Obliquity
    (%)
    Highest Inlet
    Air Temperature
    (℃)
    Main Motor
    (kw)
    Weight
    (t)
    Φ1.2×8.0
    9.0
    1.9~2.4
    3~5
    700~800
    7.5
    9
    Φ1.2×10
    11.3
    2.4~3.0
    3~5
    700~800
    7.5
    11
    Φ1.5×12
    21.2
    4.5~5.7
    3~5
    700~800
    15
    18.5
    Φ1.5×14
    24.7
    5.3~6.6
    3~5
    700~800
    15
    19.7
    Φ1.5×15
    26.5
    5.7~7.1
    3~5
    700~800
    15
    20.5
    Φ1.8×12
    30.5
    6.5~8.1
    3~5
    700~800
    18.5
    21.5
    Φ1.8×14
    35.6
    7.6~9.5
    3~5
    700~800
    18.5
    23
    Φ2.2×12
    45.6
    9.7~12.2
    3~5
    700~800
    22
    33.5
    Φ2.2×14
    53.2
    11.4~14.2
    3~5
    700~800
    22
    36
    Φ2.2×16
    60.8
    13.0~16.2
    3~5
    700~800
    22
    38
    Φ2.4×14
    63.3
    13.5~16.9
    3~5
    700~800
    37
    45
    Φ2.4×18
    81.4
    17.4~21.7
    3~5
    700~800
    37
    49
    Φ2.4×20
    90.4
    19.3~24.1
    3~5
    700~800
    45
    54
    Φ2.4×22
    99.5
    21.2~26.5
    3~5
    700~800
    45
    58
    Φ2.6×24
    127.4
    27.2~34.0
    3~5
    700~800
    55
    73
    Φ3.0×20
    141.3
    30.1~37.7
    3~5
    700~800
    75
    85
    Φ3.0×25
    176.6
    37.7~47.1
    3~5
    700~800
    75
    95
    Φ3.2×25
    201
    42.9~53.6
    3~5
    700~800
    90
    110
    Φ3.6×28
    285
    60.8~76.0
    3~5
    700~800
    160
    135

    Technical parameters of indirect heat dryer:

      Shell
    diameter
    ×shell
    Length
    Items
    Inside
    diameter
    of outer
    shell
    (mm)
    Inside
    diameter
    of inner
    shell
    (mm)
    Shell
     Length
    (m)
    Shell
     cubage
    (m³)
    Shell
    obliquity
    Lifting
    blade
     form
    Highest
    inlet air
     temperature
    (℃)
    Dimensions
    (m)
    Φ1.5×15m 1500 500 15 20.27 3-5% Lifting form 850 16.2×2.7×2.7
    Φ1.5×17m 17 22.97 18.2×2.7×2.7
    Φ1.5×19m 19 25.68 20.0×2.9×2.9
    Φ1.8×21m 1800 650 21 35.91 3-5% Lifting form 850 22.5×2.7×2.7
    Φ1.8×23m 23 39.33 24.5×2.9×2.9
    Φ1.8×25m 25 42.75 26.5×2.9×2.9
    Φ2.2×21m 2200 800 21 58.10 3-5% Lifting form 850 ----
    Φ2.2×23m 23 63.61
    Φ2.2×25m 25 69.15
